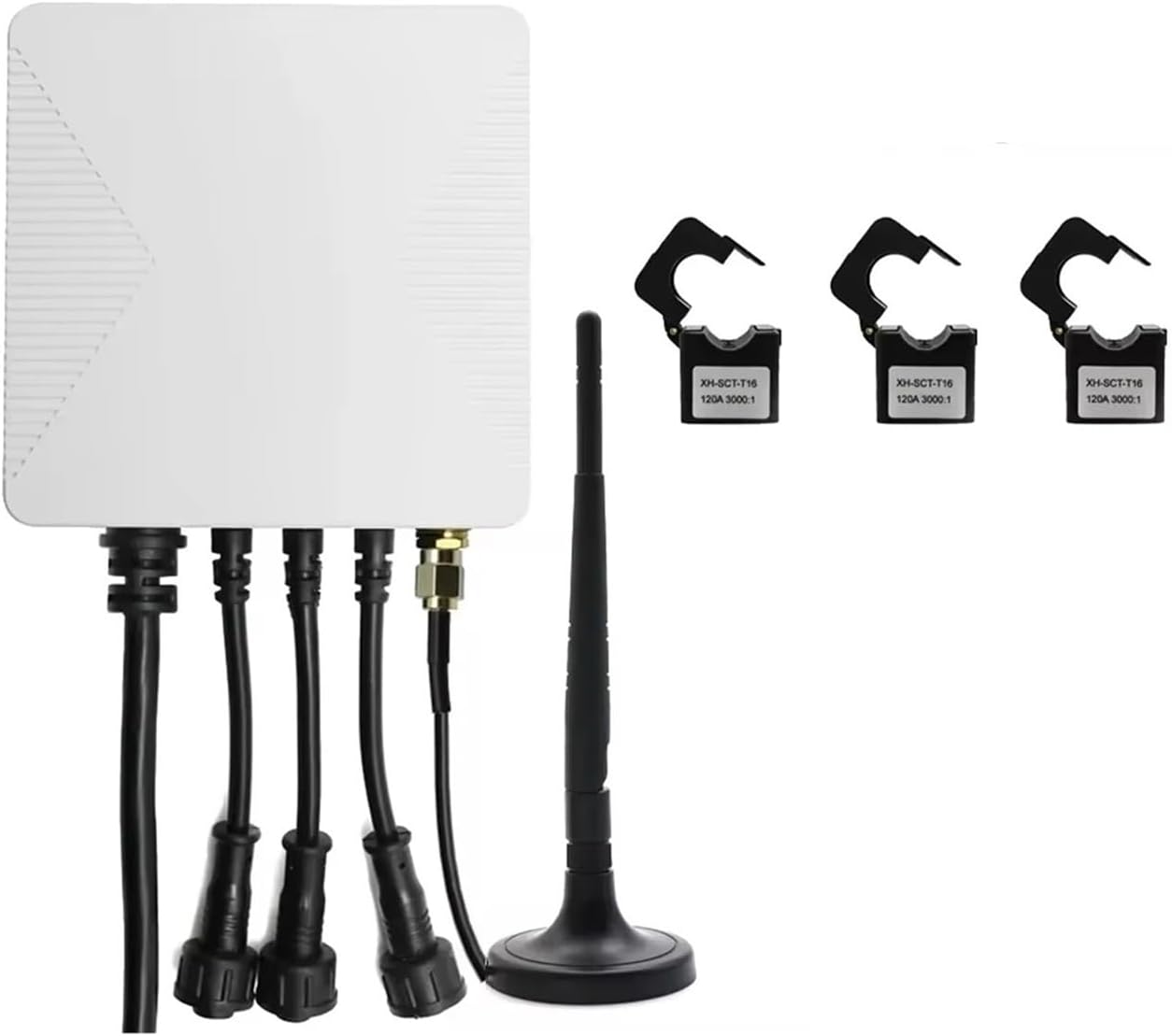

Three-phase/single-phase electricity meter 500A/300A/200A/120A/80A clamp(120A,EA7321C-BI)

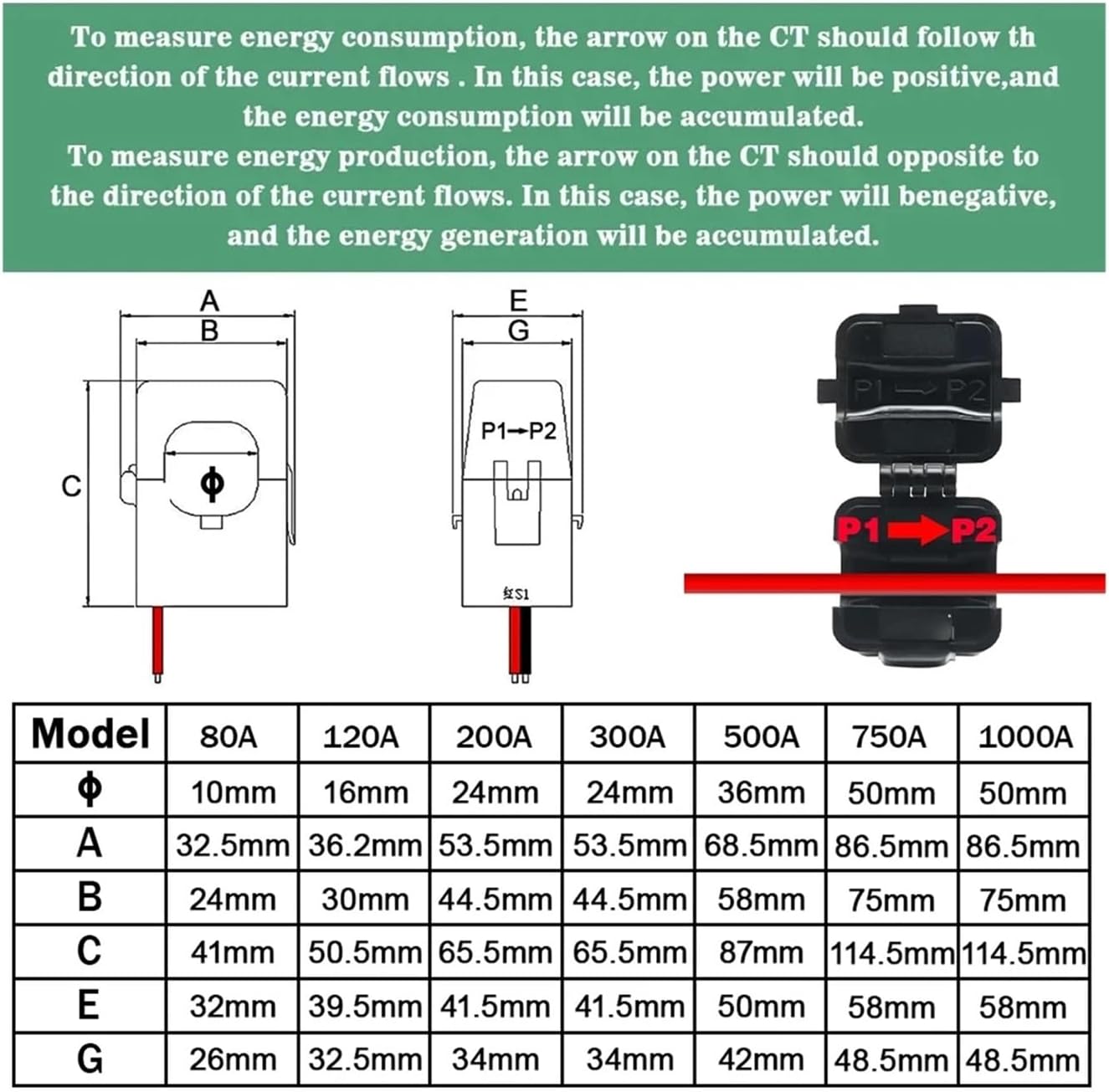

Meter SocketsElectricity meter (kWh), power monitor (three-phase, single-phase, 500A, 300A, 200A, 120A, 80A), clamp-on current transformer.Important information before placing an order1. It is a high-ampere product, and the device requires wiring by a certified professional electrician.2. The wireless router operates at a frequency of 2.4 GHz.3. This instrument requires the device under test to have a neutral wire; otherwise, it cannot measure the voltage, current, or power of the device.clamp diameter80A: 10 mm120A: 16 mm200A: 24 mm300A: 24 mm500A: 36 mm750A: 50 mm1000A: 50 mmWhen installing a CT scanner, please pay attention to the orientation of the CT scanner and ensure that all three CT scanners are oriented in the same direction. ==========Battery included: No Dimensions: 86*86*37mmOperating temperature: -20 - +55 Output voltage: 100-240V AC 50/60 HzAccuracy class: 1%Number of phases: Three-phaseModel: PC321-TYMaximum operating current: 150A and abovePower supply: Alternating currentDIY supplies: electrical appliancesEARUELETRIC Model: PC321-TYPlace of origin: Mainland ChinaCertifications: CE, RoHSAssembly status: ReadyOperating humidity: 90% non-condensingReporting time: 5 seconds
